PSS Full Electric Press Brake
SPS ® PSS Series Electric Mini Press Brake adopts servo motor directly drives the ball screw to drive the slider up and down, using heavy-duty high-precision ball screw, excellent performance, long service life, and the minimum movement setting unit of the Y axis is 0.005mm.
- Overview
- Related Products
SPS ® PSS Series Electric Mini Press Brake adopts servo motor directly drives the ball screw to drive the slider up and down, using heavy-duty high-precision ball screw, excellent performance, long service life, and the minimum movement setting unit of the Y axis is 0.005mm.
The mold consists of an upper mold and a lower mold. The upper mold is installed on the slider and fixed by a clamp. The lower mold can be single V, double V, multi-IV and other forms. The mold can be segmented or customized according to the user's requirements.
PSS Pure Electric Servo Press Brake will automatically output the appropriate power according to the working conditions. The power consumption is less than 0.5KW when idle, so it is particularly power-saving. There is no need to use and replace hydraulic oil, which stops the pollution of waste hydraulic oil to the environment.
Standard Components
● ECO 10ES Control Unit |
● Taiwan HIWIN Ball Screw |
● Standard Y and X Axis |
● Taiwan HIWIN Linear Guide Rail |
● Servo Main Motor |

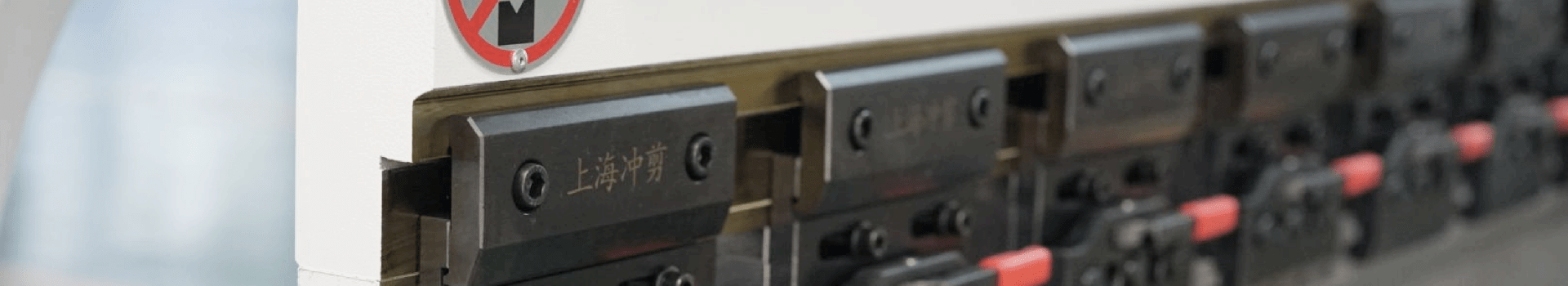

● Fast and Easy Tooling Change System |
● France Schneider Electrics |
● SPS Group High Precision Punch and Die |
 |
 |
 |
 |
|

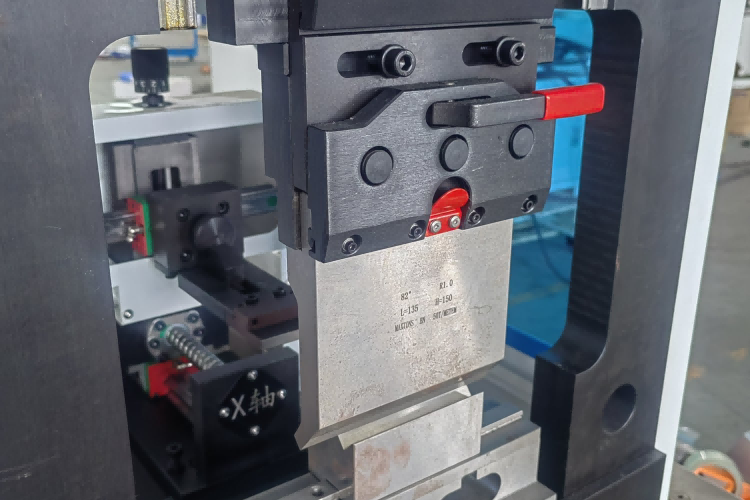

Fast Clamp Easy to change punch die |

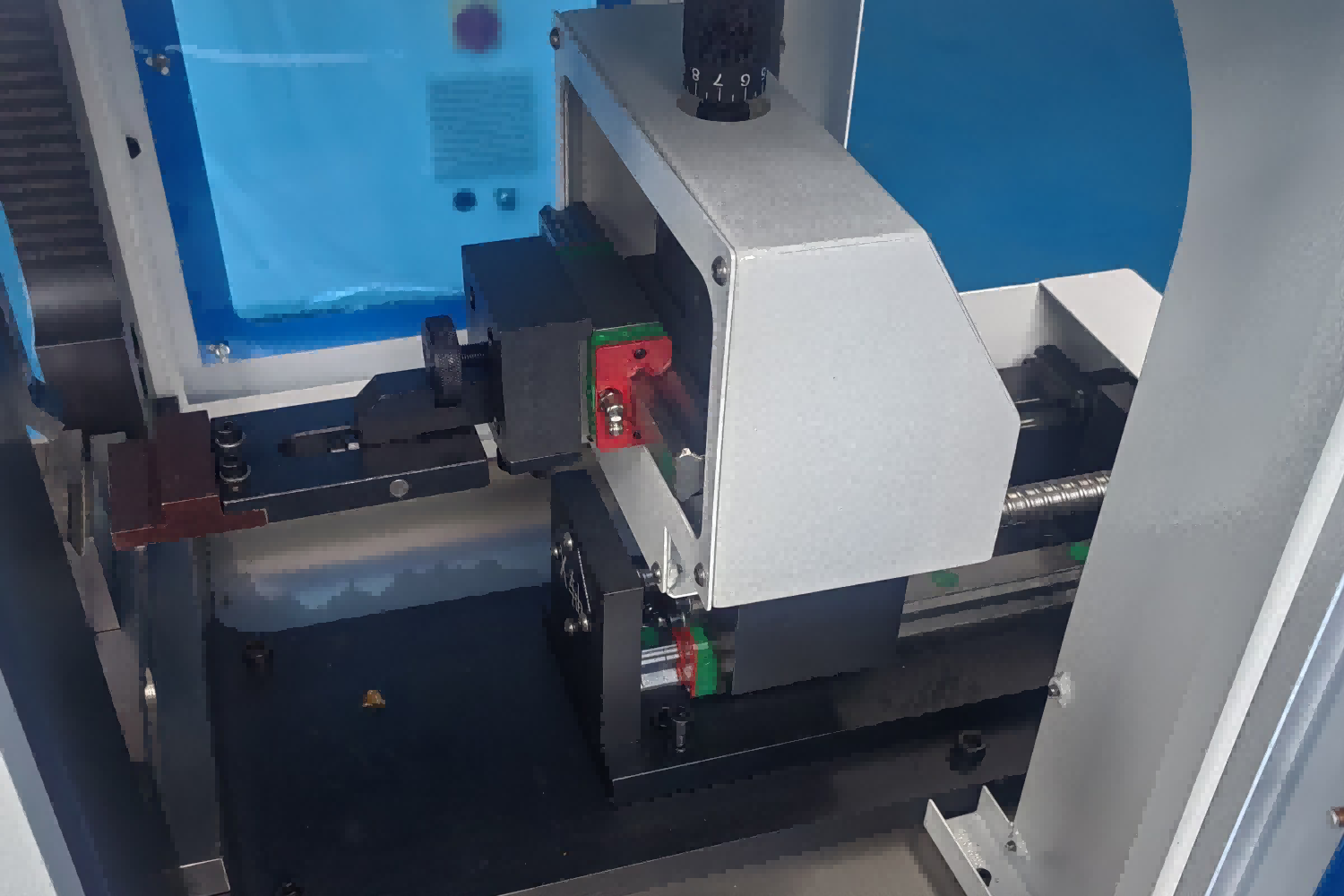

Backgauge Standard configuration: X-axis CNC back gauge, and drive by servo motor |

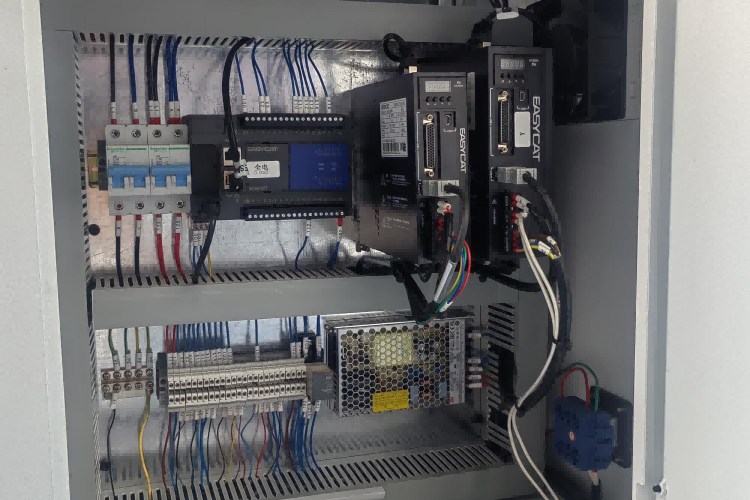

Electrics Adopts France schneider electric and EasyCat servo driver |

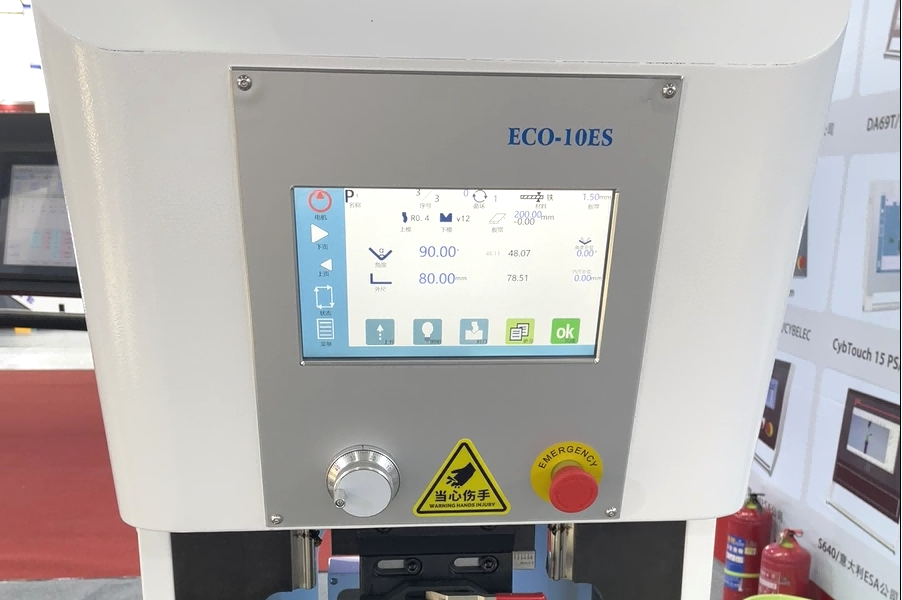

ECO 10ES Controller 10‘’ touch screen, store 2000 programs, Support English/Chinese |
Technical Parameters
Model |
Bending Pressure |
Bending Length |
Polo Distance |
Throat Depth |
Slide Strokes |
Max Open Height |
Backgauge Travel |
Main Motor |
Dimension |
Kn |
Mm |
Mm |
Mm |
Mm |
Mm |
Mm |
Kw |
Mm |
|
PSS-3T200 |
3 |
200 |
300 |
/ |
120 |
420 |
150 |
2 |
750*800*2000 |
PSS-6T400 |
6 |
400 |
370 |
150 |
120 |
420 |
150 |
3 |
750*850*2000 |
PSS-12T600 |
12 |
600 |
520 |
150 |
150 |
420 |
150 |
5.5 |
750*950*2050 |
PSS-18T600 |
18 |
600 |
770 |
150 |
300 |
420 |
250 |
7.5 |
750*1000*2100 |
