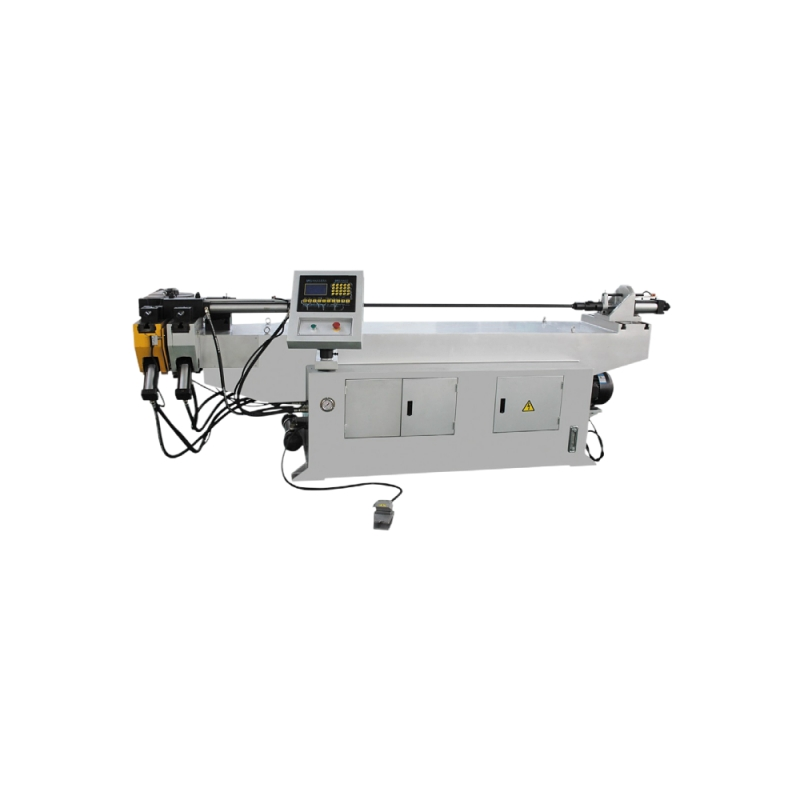

SPS ® NC Pipe Bending Machine
Adopt NC programmable controller, can be set for multiple bending angle.
- Overview
- Related Products
Adopt NC programmable controller, can be set for multiple bending angle.
Adopt high performance imported hydraulic valves and electrical components. English version display, man-machine dialogue operation, manual, half-cycle, full-cycle operation mode can be selected at will.
With mandrel device, optional with or without mandrel
Model |
Unit |
38NC |
50NC |
63NC |
75NC |
89NC |
115NC |
130NC |
Max Bend Capability |
Mm |
38*2 |
50*3 |
64*3 |
76.1*4 |
89*6 |
115*8 |
130*8 |
Max Bend Radius |
Mm |
R260 |
R350 |
R350 |
R400 |
R450 |
R520 |
R520 |
Min Bend Radius |
Mm |
≥1.5D |
≥1.5D |
≥1.5D |
≥1.5D |
≥1.5D |
≥1.5D |
≥1.5D |
Max Bend Angle |
° |
190 |
190 |
190 |
190 |
190 |
190 |
190 |
Max Feeding Length |
Mm |
1600 |
2200 |
2600 |
2800 |
3500 |
4500 |
4500 |
Control System |
/ |
Microcomputer |
||||||
Bending Pipe Mode |
|
Hydraulic |
Hydraulic |
Hydraulic |
Hydraulic |
Hydraulic |
Hydraulic |
Hydraulic |
Hydraulic System Cobtrol |
|
Solenoids |
||||||
Number of Store |
|
16*16 |
16*16 |
16*16 |
16*16 |
16*16 |
16*16 |
16*16 |
Number of Bending Pipe |
|
16 |
16 |
16 |
16 |
16 |
16 |
16 |
Hydraulic Motor Power |
Kw |
4 |
5.5 |
5.5 |
7.5 |
11 |
22 |
22 |
Max Pressure |
Mpa |
12 |
12 |
12 |
12 |
14 |
14 |
14 |
Dimension |
Cm |
260*60*100 |
300*70*100 |
320*75*110 |
400*100*110 |
430*130*120 |
570*130*160 |
570*160*130 |
